Cisco NX-OS: VXLAN Symmetric Routing

EVPN Integrated Routing and Bridging (IRB) has two options:

  • Asymmetric IRB (increased ARP cache and CAM table sizes and control plane scaling issue)
  • Symmetric IRB

Symmetric IRB

  • Ingress VTEP does both L2 and L3 lookup
  • Egress VTEp does both L3 and L2 lookup

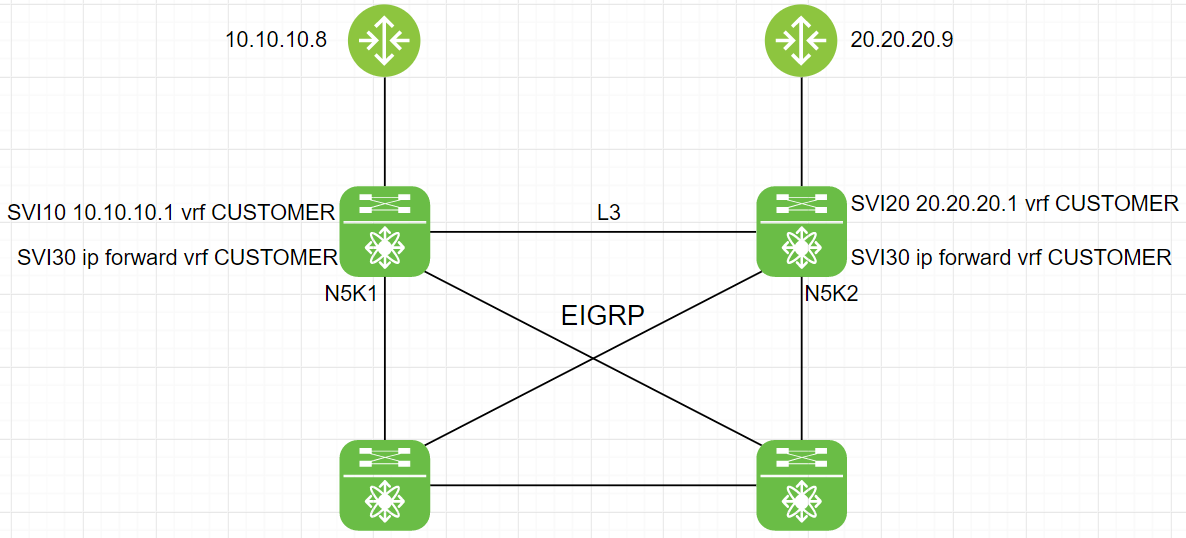

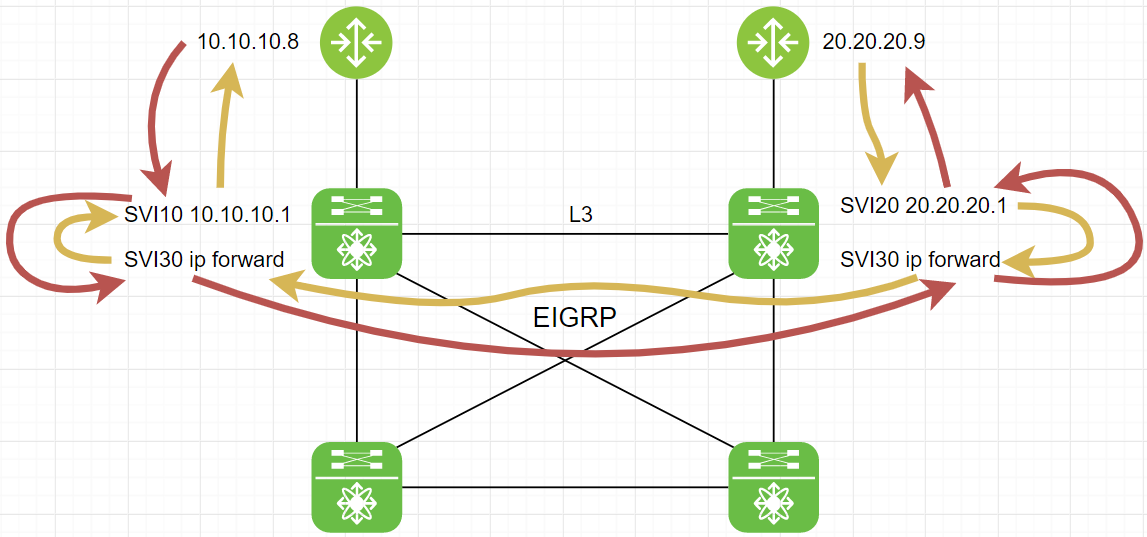

  • => Bridge – Route – Route – Bridge

L3 VNI should be configured on all VTEPS, L2 VNIs only where local ports exist

N5K1 Configuration

fabric forwarding anycast-gateway-mac 1234.1234.1234
!
! VLAN to VNI mappings
vlan 10
   vn-segment 101010
vlan 30
   vn-segment 303030
!
! VRF to VNI mapping
vrf context CUSTOMER1
   vni 303030
   rd auto
   address-family ipv4 unicast
       route-target both auto
       route-target both auto evpn
! advertise to both ipv4 unicast and l2vpn evpn
!
interface Vlan10
   no shutdown
   vrf member CUSTOMER1
   ip address 10.10.10.1/24
   fabric forwarding mode anycast-gateway
!
! Shared L3 VNI
interface Vlan30
   no shutdown
   vrf member CUSTOMER1
   ip forward
!
interface nve1
   no shutdown
   host-reachability protocol bgp
   source-interface loopback0
   member vni 101010
       mcast-group 228.7.7.8
   member vni 303030 associate-vrf
!member vni 303030 associate-vrf <—- L3 segment
!
router bgp 1
   log-neighbor-changes
   neighbor 1.1.1.3
       remote-as 1
       update-source loopback0
       address-family l2vpn evpn
           send-community extended
   neighbor 1.1.1.4
       remote-as 1
       update-source loopback0
       address-family l2vpn evpn
           send-community extended
   vrf CUSTOMER1
       address-family ipv4 unicast
           redistribute direct route-map PERMIT
!
evpn
   vni 101010 l2
       rd auto
       route-target import auto
        route-target export auto

N5K2 Configuration

fabric forwarding anycast-gateway-mac 1234.1234.1234
!
! VLAN to VNI mappings
vlan 20
   vn-segment 202020
vlan 30
   vn-segment 303030
!
! VRF to VNI mapping
vrf context CUSTOMER1
   vni 303030
   rd auto
   address-family ipv4 unicast
       route-target both auto
       route-target both auto evpn
! advertise to both ipv4 unicast and l2vpn evpn
!
interface Vlan20
   no shutdown
   vrf member CUSTOMER1
   ip address 20.20.20.1/24
   fabric forwarding mode anycast-gateway
!
! Shared L3 VNI
interface Vlan30
   no shutdown
   vrf member CUSTOMER1
   ip forward
!
interface nve1
   no shutdown
   host-reachability protocol bgp
   source-interface loopback0
   member vni 202020
       mcast-group 228.7.7.9
   member vni 303030 associate-vrf
!member vni 303030 associate-vrf <—- L3 segment
!
router bgp 1
   log-neighbor-changes
   neighbor 1.1.1.3
       remote-as 1
       update-source loopback0
       address-family l2vpn evpn
           send-community extended
   neighbor 1.1.1.4
       remote-as 1
       update-source loopback0
       address-family l2vpn evpn
           send-community extended
   vrf CUSTOMER1
       address-family ipv4 unicast
           redistribute direct route-map PERMIT
!
evpn
   vni 202020 l2
       rd auto
       route-target import auto
        route-target export auto

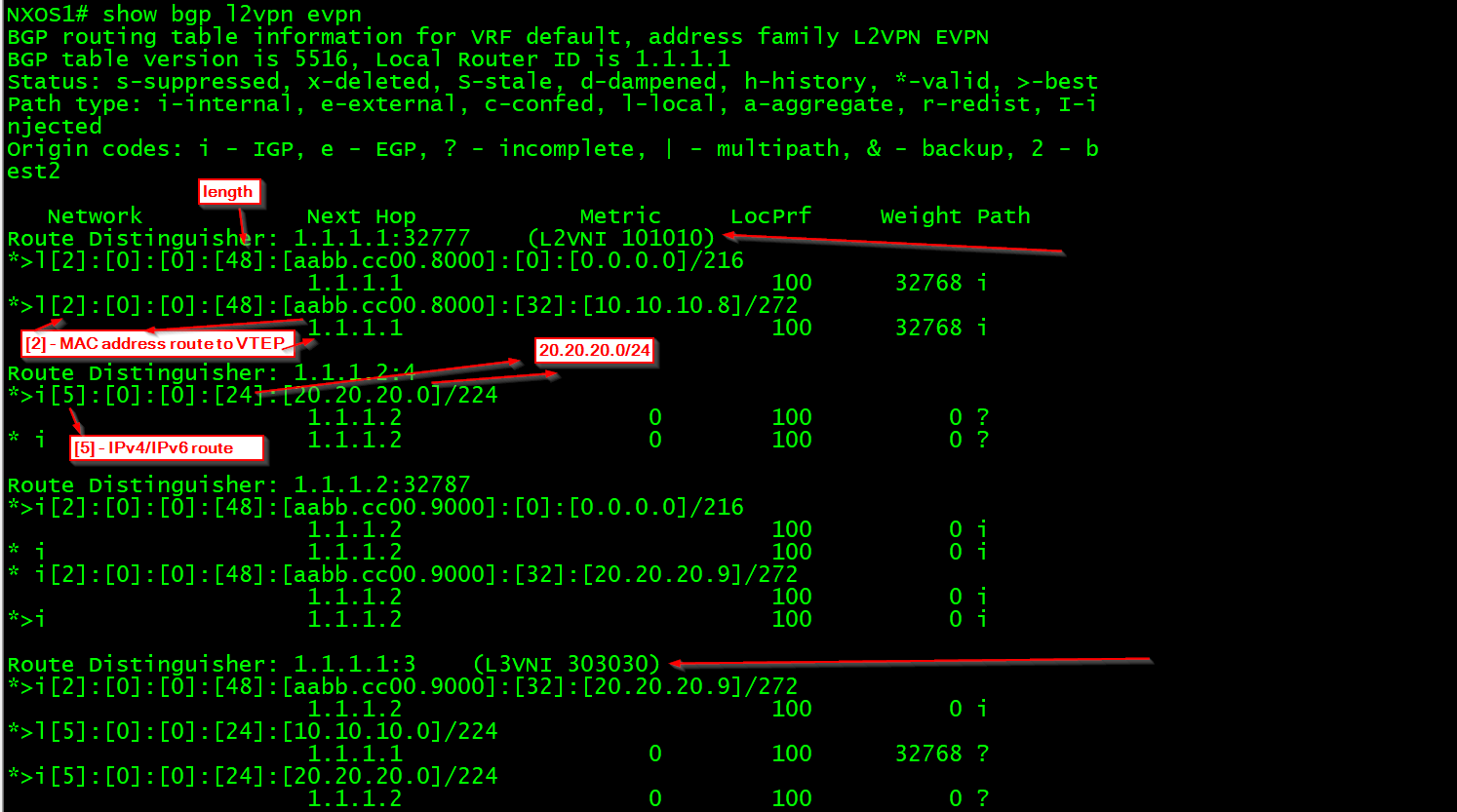

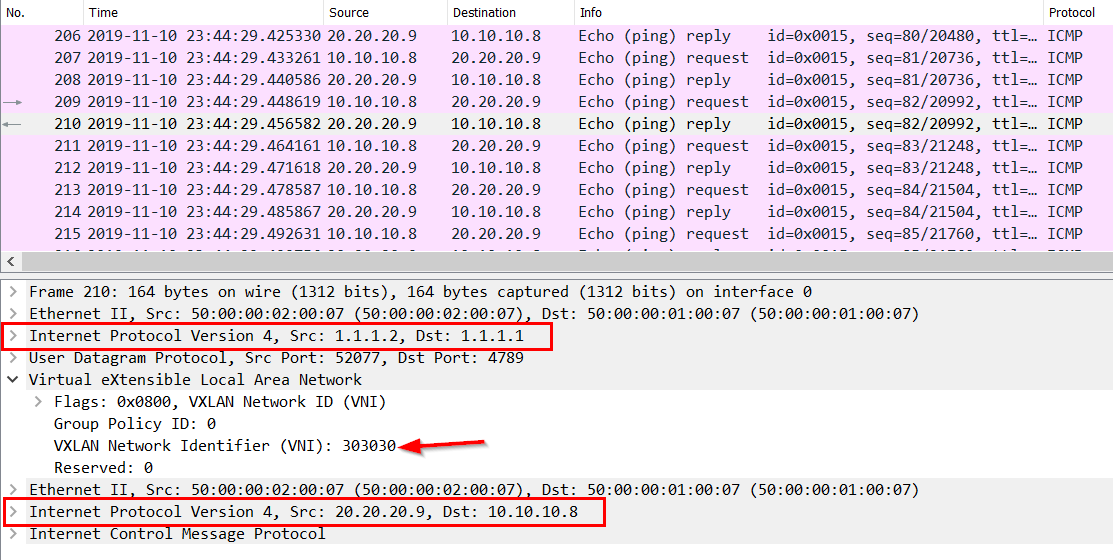

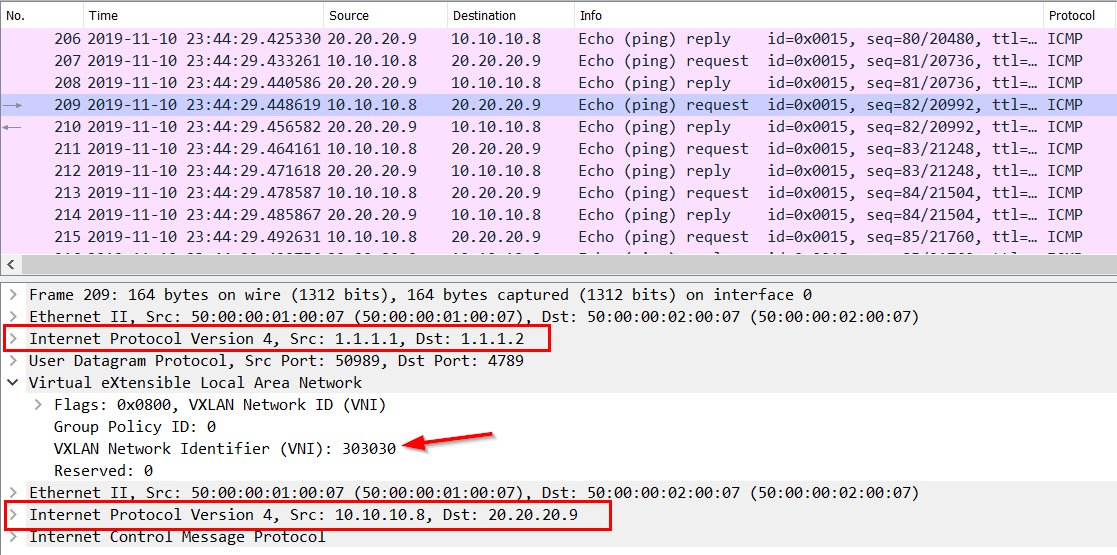

Here is a packet capture on the N5K2 switch, interface g0/2 between N5K1 and N5K2:

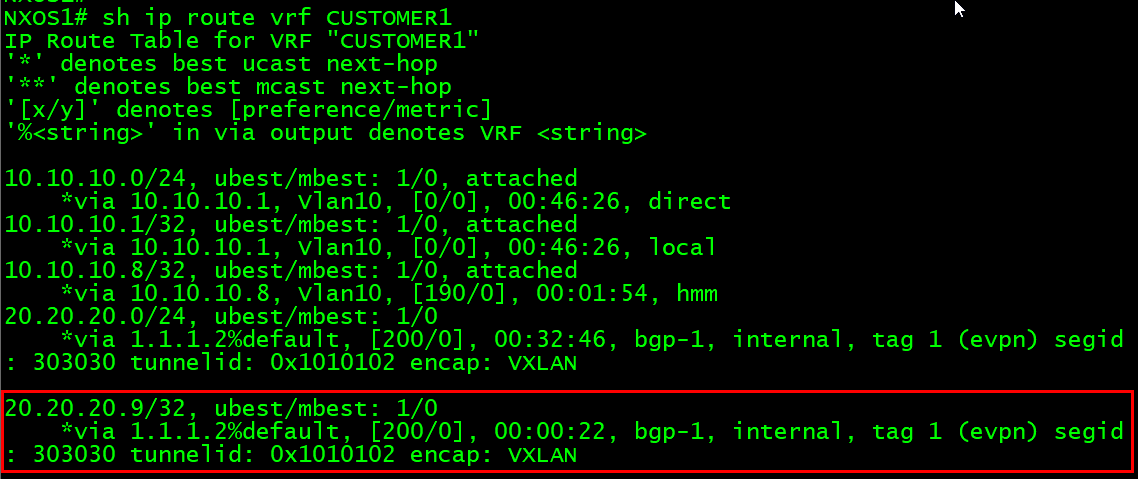

The route is only generated, when there is traffic going to the destination -> route to 20.20.20.9/32:
